CIMC INTL brand tipper semi trailer
Introduction:
CIMC INTL is the factory who produce trailers specially, and also the OEM factory for sinotruk, Shacman, foton, hino, beiben, honda, benz factory. Now CIMC INTL facotry sell trailers to the market 3000 units per year, especially Africa markets. We focus on Africa markets more than 15 years, with engineer visit local market every 3 months.
4 axles tipper semi trailer is the best selling model in Africa. Now our tipper semi trailer in Mali ranks No. 1. it suits for heavy good transportation, like stone and mining materials. It is strong enough to carry up 80T in long distance delivery, rough road situation.

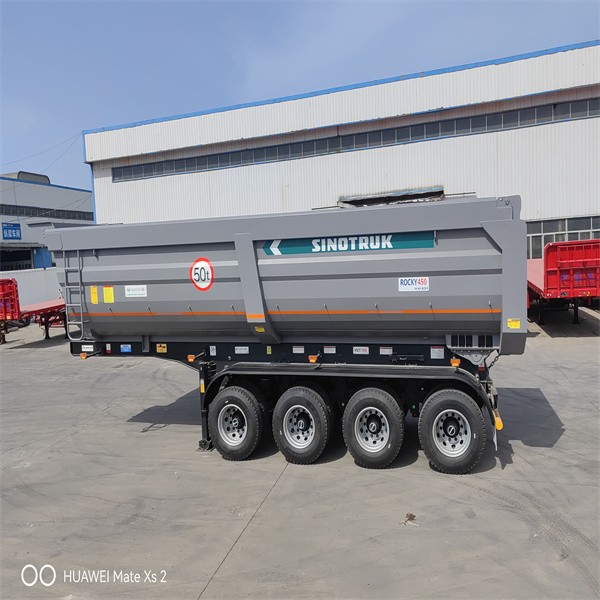

Trailers Photos :
Specifications of 4 axles Tipper semi trailer, 60ton
|
Type
|
4 axle U-shape Double-web dump trailer
|
|
|
Transport material |
Stone、Mineral sands、Iron powder、Cement clinker、Grain……etc |
|
|
Way of opening the rear door |
Wing-door structure with Rear upturning |
|
|
Paining
|
Primer coat+ top coat after sand blasting, color according to Customer’s requirement |
|
|
Parameter
|
Outer Dimension(+/- 10 mm) |
Length × width × height: 10248x2730x3800mm |
|
King pin setting
|
950mm from the face of front bloster
|
|
|
Maximum lifting angle
|
44° |
|
|
Tare weight（kg）
|
11400(+/- 5%) 11.4吨(+/- 5%) |
|
|
Payload （kg）
|
60,000kg |
|
|
Fabric
|
Main beam(mm)
|
Submerged arc welding
|
|
Flange and web(mm) |
10/5+5/12 ,VICT700L |
|
|
Body
|
Inside dimension
|
Length × width × height: 9200x2500x1780mm |
|
Capacity |
40 m³ |
|
|
Floor
|
6 mm,ROCKY450 6 mm （equivalent to HARDOX 450/400） |
|
|
Side wall
|
3 mm, ROCKY450 3.0mm （equivalent to HARDOX 450/400） |
|
|
OEM
|
Landing gear
|
GOLDENSTONE 30T, Lifting capacity 30T and static load 80T. |
|
Kingpin
|
JOST 3.5’’
|
|
|
Hydraulic system
|
HYVA 202， |
|
|
Brake system
|
Dual lines air brake system,T30 on front two Axle, T30/30 on Rear two Axle, WABCO brake valve ,without ABS;WABCO |
|
|
ABS |
No |
|
|
Elec system
|
24V ISO1185 standard modular harness 24V ISO1185 |
|
|
Suspension
|
One MANDEEP German type air suspension (Vibracoustic or Contitech or other high quality air bag. KONI or SACHSI shock absorber)with first axle lifting，3-axle mechanical suspension |
|
|
Axle |
1X16T + 3X16T FUWA AXLE
|
|
|
Tire |
17x 315/80R22.5-18PR. |
|
|
Rim |
17x9.0V-22.5 |
|
|
Spare tire carrier |
2 unit per chassis
|
|
|
Tool box
|
1 unit per chassis
|
|
|
Paint
|
Polyurethane |
Primer coat+ top coat after sand blasting, color according to Customer’s requirement |
|
|
l |
|

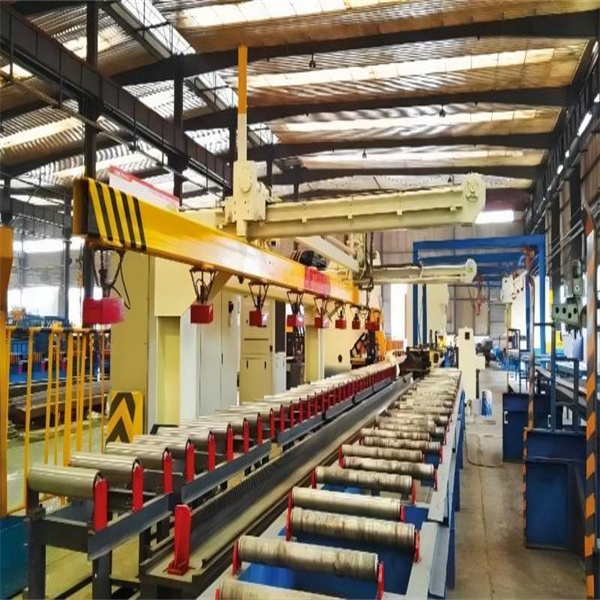

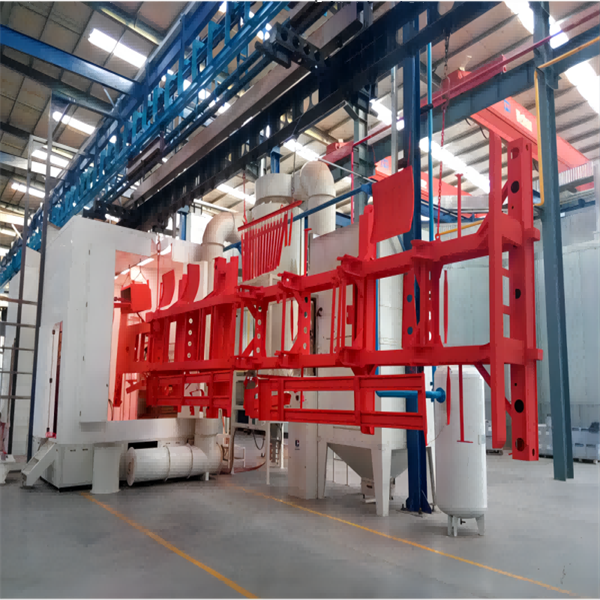

Our factory photos:
