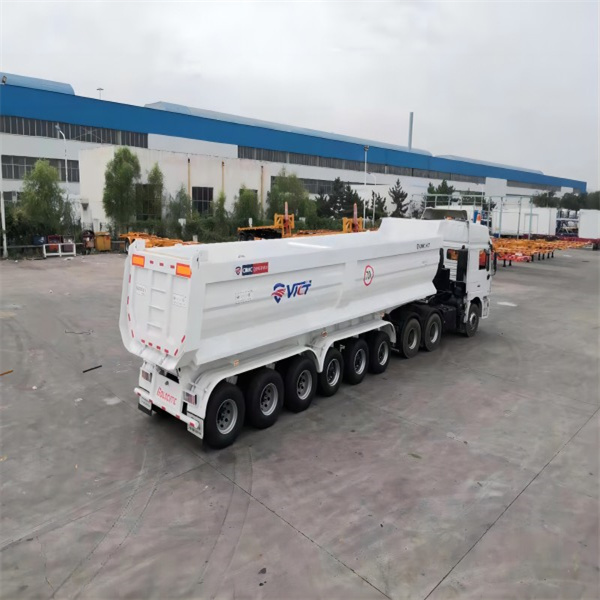

Specifications of 6 axles Tipper semi trailer, 70ton
|
Type
|
6 axle U-shape Double-web dump trailer， 43cbm
|
|
|
Transport material |
Stone、Mineral sands、Iron powder、Cement clinker、Grain……etc |
|
|
Way of opening the rear door |
Wing-door structure with Rear upturning |
|
|
Paint
|
Primer coat+ top coat after sand blasting, color according to Customer’s requirement
|
|
|
Parameter
|
Outer Dimension(+/- 10 mm) |
Length × width × height: 10248x2730x3800mm |
|
King pin setting |
950mm from the face of front bloster
|
|
|
Maximum lifting angle
|
44° |
|
|
Tare weight（kg）
|
11400(+/- 5%) |
|
|
Payload （kg）
|
60,000kg |
|
|
Fabric
|
Main beam(mm)
|
Submerged arc welding
|
|
Flange and web(mm) |
10/5+5/12 ,VICT700L |
|
|
Body
|
Inside dimension
|
Length × width × height: 9200x2500x1780mm |
|
Capacity
|
44 m³ |
|
|
Floor
|
6 mm,ROCKY450
|
|
|
Side wall |
3 mm, ROCKY450 |
|
|
OEM
|
Landing gear
|
GOLDENSTONE 30T, Lifting capacity 30T and static load |
|
Kingpin |
JOST 3.5’’
|
|
|
Hydraulic system
|
HYVA 202， |
|
|
Brake system
|
Dual lines air brake system,T30 on front two Axle, T30/30 on Rear two Axle, WABCO brake valve ,without ABS;WABCO |
|
|
ABS |
No |
|
|
Elec system
|
24V ISO1185 standard modular harness 24V ISO1185 |
|
|
Suspension
|
One MANDEEP German type air suspension (Vibracoustic or Contitech or other high quality air bag. KONI or SACHSI shock absorber)with first axle lifting，3-axle mechanical suspension |
|
|
Axle
|
2X16T + 3X16T FUWA AXLE
|
|
|
Tire
|
20 x 315/80R22.5-18PR. 17条315/80R22.5-18PR， |
|
|
Rim
|
17x9.0V-22.5 |
|
|
Spare tire carrier
|
2 unit per chassis
|
|
|
Tool box
|
1 unit per chassis
|
|
|
Paint
|
Polyurethane
|
Primer coat+ top coat after sand blasting, color according to Customer’s requirement
|
|
|
l |
|

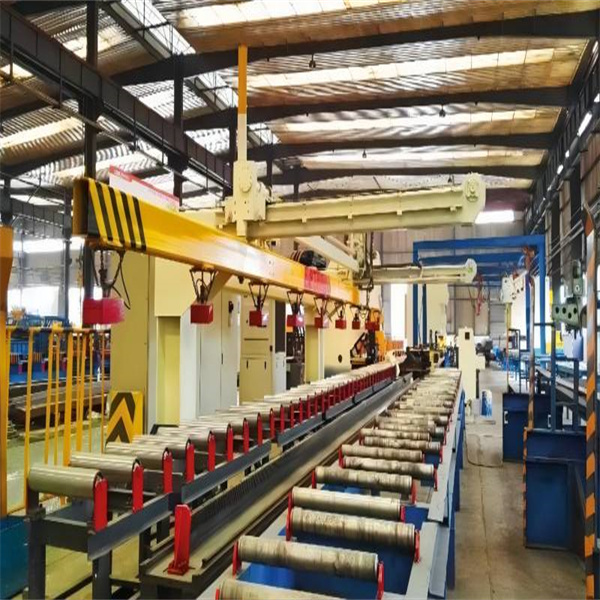

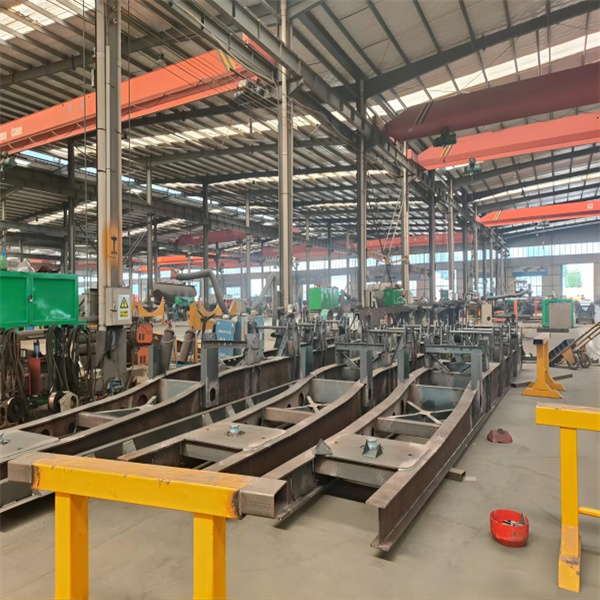

Our factory photos:
